kimvv Python package integration

The final step in creating your Test Driver is to make sure it will be able to cleanly integrate into the kimvv Python package for the materials science community to run on their own outside of the OpenKIM pipeline. kimvv is built using setuptools and published on PyPI at https://pypi.org/project/kimvv/. This page will walk you through the process to test that your Test Driver will operate correctly independent of your local directory structure or environment configuration.

The testing workflow will run your Test Driver on FCC gold (prototype label A_cF4_225_a) using 3 models:

• a KIM Portable Model: LJ_ElliottAkerson_2015_Universal__MO_959249795837_003

• a KIM Simulator Model: Sim_LAMMPS_ADP_StarikovGordeevLysogorskiy_2020_SiAuAl__SM_113843830602_000

• a non-KIM ASE Calculator: ase.calculators.lj.LennardJones(sigma=2.42324, epsilon=2.30580, rc=9.69298)

Make sure your Test Driver is able to run these simulations in the first place before beginning this process (except for the non-KIM calculator if your Test Driver uses LAMMPS).

Forking the kimvv repo

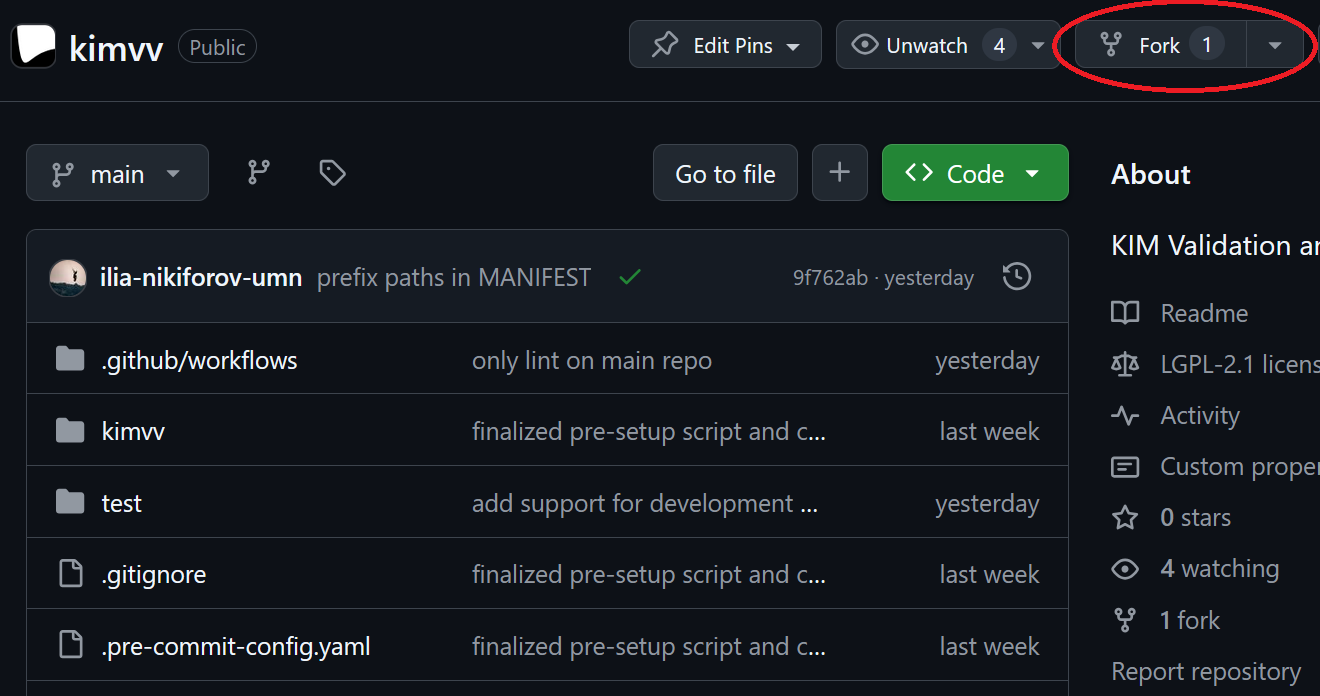

First, make a fork of the kimvv repo under your own Github account by navigating to https://github.com/openkim/kimvv and clicking the "fork" button:

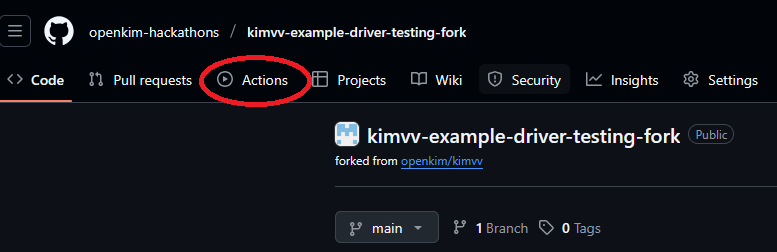

Once the fork is in your account, before making any changes, allow Github actions to run by clicking on the "actions" button and agreeing to run actions on the resulting page:

Setting up the packaging files

Next, you need to make sure your Test Driver is ready for packaging. Here are the files you may need to provide. They should be in the same directory as your kimspec.edn file, considered the root directory of your Test Driver (one level above the test_driver directory). Examples of all of them exist in the example Test Driver: https://github.com/openkim-hackathons/CrystalGenomeASEExample__TD_000000654321_000

• README.rst: Your Test Driver should include documentation. In the future, these will be automatically compiled into documentation for the kimvv package. We recommend using .rst format to make this task easier. Think about what you would like users to know about the usage of your Test Driver.

• requirements.txt: This is the requirements file for Python dependencies. It should include kim-tools at the minimum, as well as any other packages your Python code imports directly. Note that this does NOT include Python Standard Library imports (if you can find it on https://docs.python.org/3/library/index.html, it does not need to be in requirements.txt). It will be included in the kimvv project as dynamic metadata, which supports a subset of the PyPI Requirements File Format (-c/-r/-e and other flags are not supported).

• MANIFEST.in: if your Test Driver requires non-Python files to operate (e.g. data files, pre-made images, etc.), you must declare them in this file for them to be included in the distribution. See the example Test Driver for a simple sample. Full documentation regarding MANIFEST.in is here. The paths should be specified relative to the MANIFEST.in file, the kimvv script pre_setup.py will automatically edit the paths for incorporation into the Python package.

Issuing a release and adding it to your fork of kimvv

Next, you need to issue a release of your Test Driver. Because the release that is fully tested and ready for OpenKIM submission will be named and tagged "v000", it is recommended that you tag your release something like "v000b0". Make sure your .gitattributes file is correctly configured to ignore any files and directories that should be excluded from releases (e.g. run.py, output/, local-props/). See the example .gitattributes.

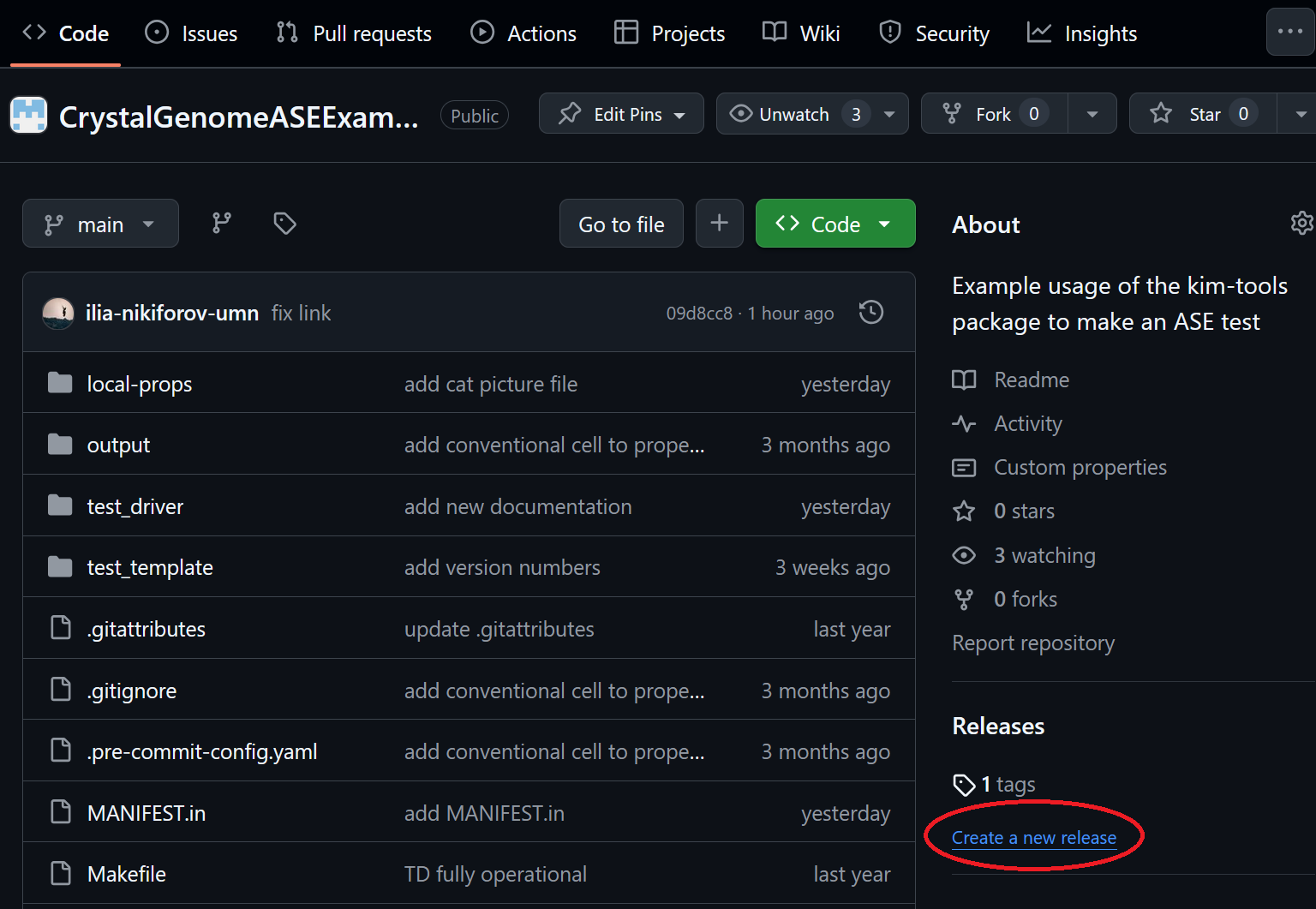

Issue a release by clicking the "Create a new release" link in your Test Driver repository:

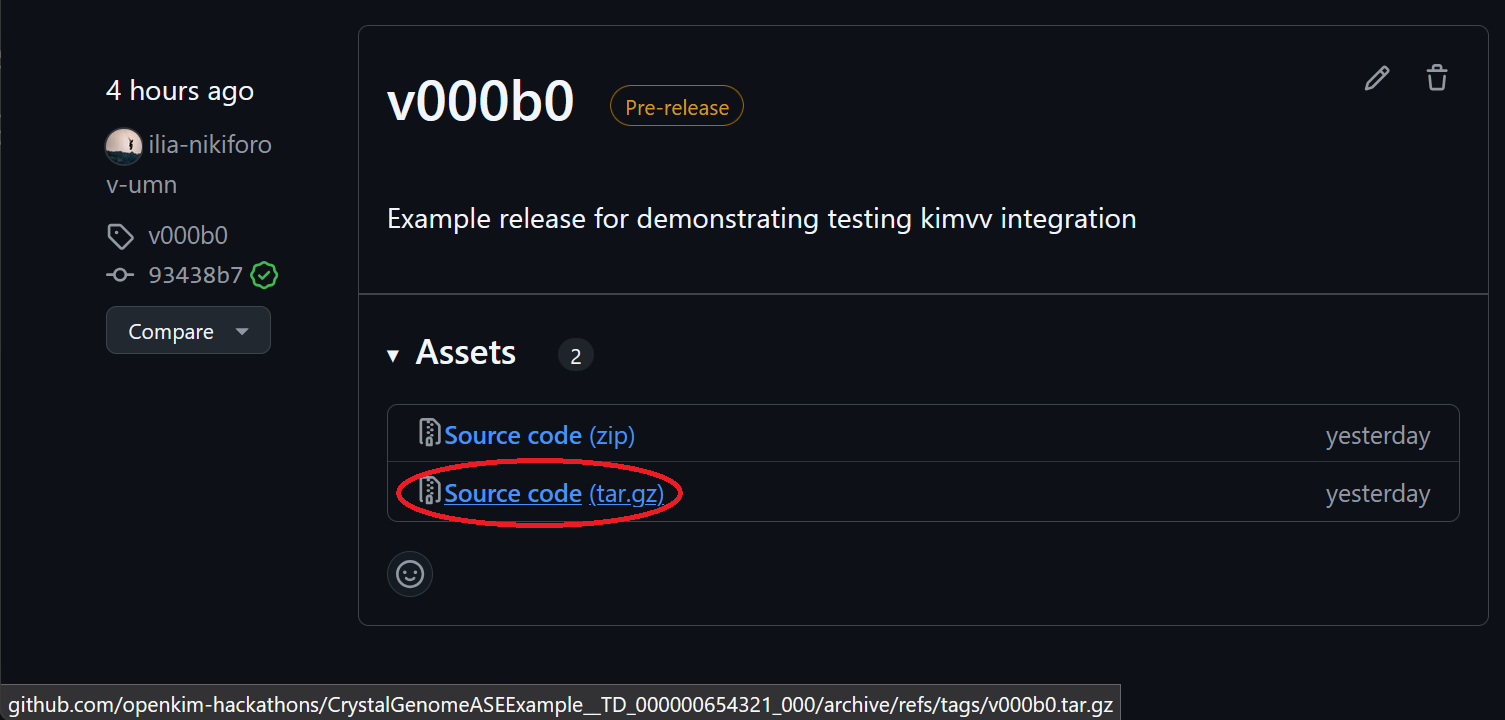

Once the release is issued, you will need the URL of the .tar.gz file created by GitHub as part of it, or the file itself:

Next, you need to add the URL of the .tar.gz to the pre_setup.py script in your fork of kimvv. An example fork for testing the example Test Driver is available, and here is where you add the URL: pre_setup.py. This will only work if your development repo is public. Alternatively, you may add the archive directly to your fork, and add the filename to pre_setup.py, like in this example: https://github.com/openkim-hackathons/kimvv-example-LAMMPS-driver-testing-fork/blob/main/pre_setup.py (the archive is simply in the top level of the repo). Note that DEVEL_TEST_DRIVERS is a dictionary with the path or URL as a key. The values are the dictionary of additional non-default arguments you wish to pass to your Test Driver for testing. For example, for a molecular dynamics TD, you will likely want to specify a small system size so it can run in reasonable time on a free GitHub runner.

Note

If you are performing the final test before hitting "submit" on the openkim.org web form, you should use your InProgress .txz archive from the webapp instead of from GitHub.

Finally, if your properties have not yet been added to openkim.org, you need to add your Property Definitions to the test/local-props directory of your kimvv fork.

Checking that your fork passes the tests

After making the above changes, commit and push the changes to your fork of kimvv. The Github Actions workflow will automatically check that the kimvv package containing your driver correctly installs and runs the previously described simulations.

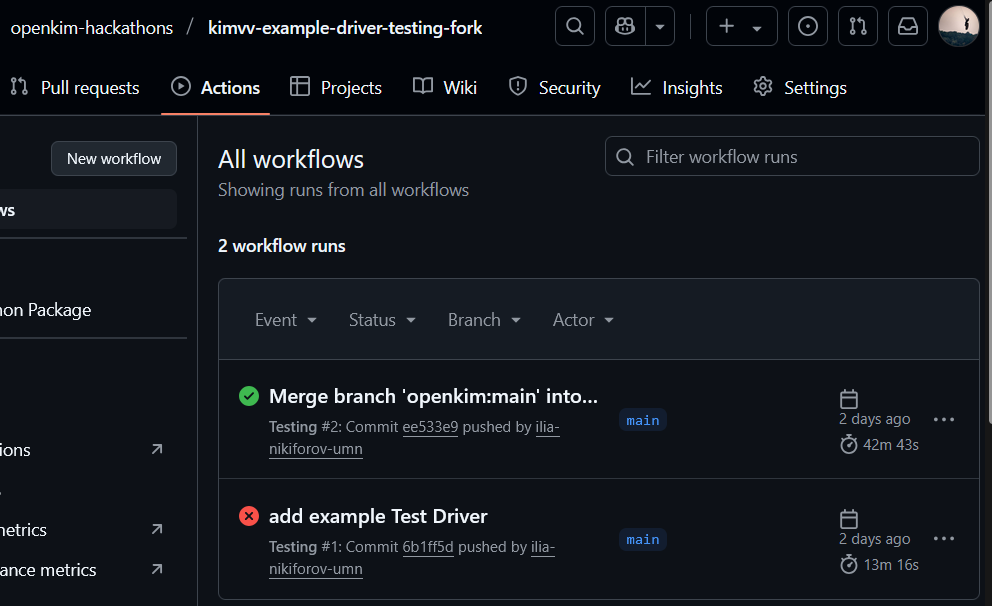

When you click on "Actions" in your kimvv fork on Github after pushing your changes, you should see the test workflow in progress, failed, or succeeded. the example on the right shows a failed and successful run:

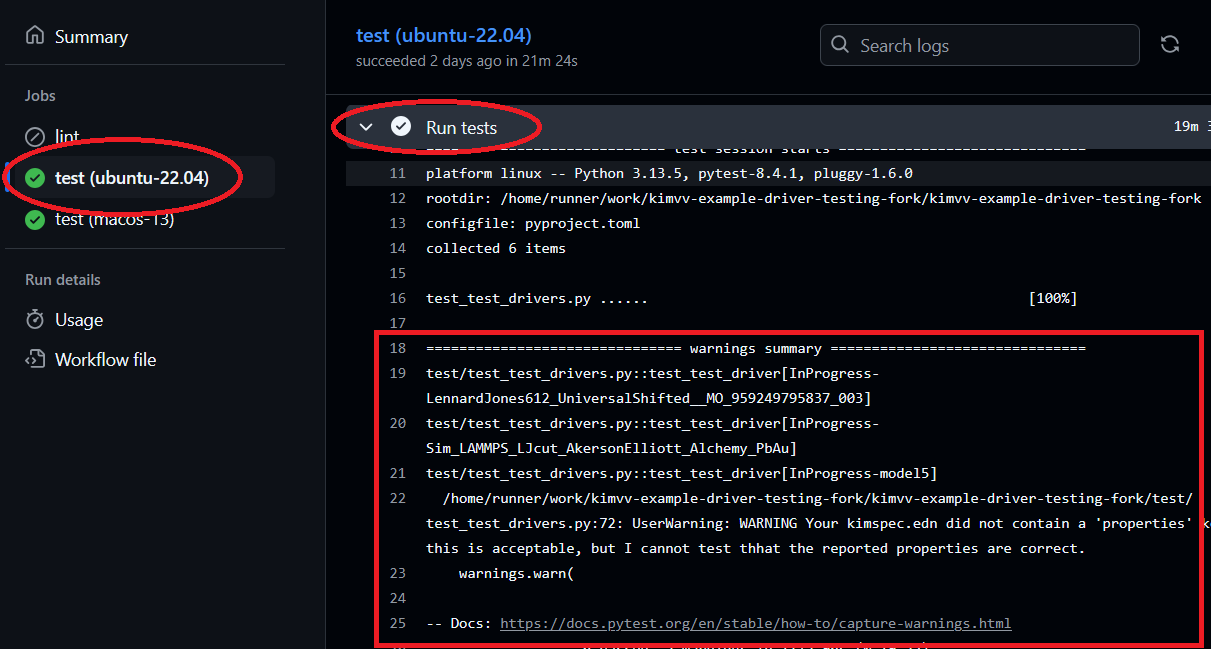

If your Test Driver uses LAMMPS, a successful run is all that is required. If it does not, you should take one additional step to see that your Test Driver runs with non-KIM ASE calculators. Click on the successful run, and click on one of the jobs (e.g. test (ubuntu-22.04")). Expand the "Run tests" section and check that there is no WARNING Your Test Driver is unable to run with non-KIM calculators....
